1. Labels in Tkinter

By Bernd Klein. Last modified: 01 Feb 2022.

Hello Tkinter Label

We will start our tutorial with one of the easiest widgets of Tk (Tkinter), i.e. a label. A Label is a Tkinter Widget class, which is used to display text or an image. The label is a widget that the user just views but not interact with.

There is hardly any book or introduction into a programming language, which doesn't start with the "Hello World" example. We will draw on tradition but will slightly modify the output to "Hello Tkinter" instead of "Hello World".

Hello Tkinter with Python

The following Python script uses Tkinter to create a window with the text "Hello Tkinter". You can use the Python interpretor to type this script line after line, or you can save it in a file, for example, "hello.py":

import tkinter as tk

# if you are still working under a Python 2 version,
# comment out the previous line and uncomment the following line
# import Tkinter as tk

root = tk.Tk()

w = tk.Label(root, text="Hello Tkinter!")
w.pack()

root.mainloop()

Live Python training

instructor-led training course

Enjoying this page? We offer live Python training courses covering the content of this site.

See: Live Python courses overview

Enrol here

Starting our example

If we save the script under the name hello.py, we can start it like this using the command shell:

$ python3 hello.py

If you run the command under the Gnome and Linux, the window the window will look like this:

Tk widgets

Under Windows it appears in the Windows look and feel:

Hello Tkinter Windows

Explanation

The tkinter module, containing the Tk toolkit, has always to be imported. In our example, we imported tkinter by renaming it into tk, which is the preferred way to do it:

import tkinter as tk

To initialize tkinter, we have to create a Tk root widget, which is a window with a title bar and other decoration provided by the window manager. The root widget has to be created before any other widgets and there can only be one root widget.

root = tk.Tk()

The next line of code contains the Label widget. The first parameter of the Label call is the name of the parent window, in our case "root". So our Label widget is a child of the root widget. The keyword parameter "text" specifies the text to be shown:

w = tk.Label(root, text="Hello Tkinter!")

The pack method tells Tk to fit the size of the window to the given text.

w.pack()

The window won't appear until we enter the Tkinter event loop:

root.mainloop()

Our script will remain in the event loop until we close the window.

Live Python training

instructor-led training course

Enjoying this page? We offer live Python training courses covering the content of this site.

See: Live Python courses overview

Enrol here

Using Images in Labels

As we have already mentioned, labels can contain text and images. The following example contains two labels, one with a text and the other one with an image.

import tkinter as tk

root = tk.Tk()
logo = tk.PhotoImage(file="python_logo_small.gif")

w1 = tk.Label(root, image=logo).pack(side="right")

explanation = """At present, only GIF and PPM/PGM
formats are supported, but an interface
exists to allow additional image file
formats to be added easily."""

w2 = tk.Label(root,
              justify=tk.LEFT,
              padx = 10,
              text=explanation).pack(side="left")
root.mainloop()

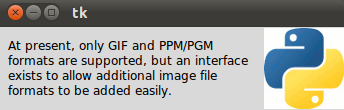

If you start this script, it will look like this using Ubuntu Linux with Gnome desktop:

tkinter Label with included image

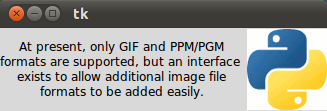

The "justify" parameter can be used to justify a text on the LEFT, RIGHT or CENTER. padx can be used to add additional horizontal padding around a text label. The default padding is 1 pixel. pady is similar for vertical padding. The previous example without justify (default is centre) and padx looks like this:

Label with included image

You want the text drawn on top of the image? No problem! We need just one label and use the image and the text option at the same time. By default, if an image is given, it is drawn instead of the text. To get the text as well, you have to use the compound option. If you set the compound option to CENTER the text will be drawn on top of the image:

import tkinter as tk

root = tk.Tk()
logo = tk.PhotoImage(file="python_logo_small.gif")

explanation = """At present, only GIF and PPM/PGM
formats are supported, but an interface
exists to allow additional image file
formats to be added easily."""

w = tk.Label(root,
             compound = tk.CENTER,
             text=explanation,
             image=logo).pack(side="right")

root.mainloop()

Text on top of image in label

We can have the image on the right side and the text left justified with a padding of 10 pixel on the left and right side by changing the Label command like this:



w = Label(root,
          justify=LEFT,
          compound = LEFT,
          padx = 10,
          text=explanation,
          image=logo).pack(side="right")

If the compound option is set to BOTTOM, LEFT, RIGHT, or TOP, the image is drawn correspondingly to the bottom, left, right or top of the text.

Colorized Labels in various fonts

Some Tk widgets, like the label, text, and canvas widget, allow you to specify the fonts used to display text. This can be achieved by setting the attribute "font". typically via a "font" configuration option. You have to consider that fonts are one of several areas that are not platform-independent.

The attribute fg can be used to have the text in another colour and the attribute bg can be used to change the background colour of the label.

import tkinter as tk

root = tk.Tk()
tk.Label(root,
		 text="Red Text in Times Font",
		 fg = "red",
		 font = "Times").pack()
tk.Label(root,
		 text="Green Text in Helvetica Font",
		 fg = "light green",
		 bg = "dark green",
		 font = "Helvetica 16 bold italic").pack()
tk.Label(root,
		 text="Blue Text in Verdana bold",
		 fg = "blue",
		 bg = "yellow",
		 font = "Verdana 10 bold").pack()

root.mainloop()

The result looks like this:

Colored Labels with different fonts

Live Python training

instructor-led training course

Enjoying this page? We offer live Python training courses covering the content of this site.

See: Live Python courses overview

Enrol here

Dynamical Content in a Label

The following script shows an example, where a label is dynamically incremented by 1 until the stop button is pressed:

import tkinter as tk

counter = 0
def counter_label(label):
  def count():
    global counter
    counter += 1
    label.config(text=str(counter))
    label.after(1000, count)
  count()


root = tk.Tk()
root.title("Counting Seconds")
label = tk.Label(root, fg="green")
label.pack()
counter_label(label)
button = tk.Button(root, text='Stop', width=25, command=root.destroy)
button.pack()
root.mainloop()

The result of the previous script looks like this:

Dynamic content in Label
